MAINTENANCE-FREE FRP ROOFTOP WALKWAY SYSTEM
Our Fiberglass Reinforced Plastic (FRP) Walkway Grating is using superior quality raw materials that are tested on various quality parameters. It is made of fiberglass and Isopthalic polyester resin to protect, which has properties of durability, corrosion resistivity and fire retardancy.
Perfect foot hold grip
Permanent slip resistance
Non-sparking and non-conductive
Very quick to install
High Load Bearing Capacity
Installation of FRP Grating Walkway is very simple, quick and economical as compared to cumbersome traditional methods.FRP Walkways are mounted directly on roof sheet or elevated above the roof sheet surface. SS 304 & SS 316 Clamping systems are available to fix Walkway Panels.
FRP Walkway Panels are available in 300-1000mm widths and up to 4000mm lengths. Depending upon width and load factors, we can FRP Walkways are supplied in 20mm, 25mm, 30mm & 38mm Height.
FRP Walkways are manufactured in Yellow color, as per OSHA standard 1910.145. This color is recommended for the identification of specific physical hazards including falling, tripping and for designating caution.
ECR Pultruded ROD
Composite/Polymer Insulator Core Rod
We, NJ Engitech is an Indian origin company engaged in manufacturing Fiberglass Epoxy Pultruded sections used for electrical insulation in Electrical Transformers, Insulators, Lighting Arrestors, Drop out fuses, GOAB Switches, Heavy Motors and various other applications .As a new development,NJ Engitech is has introduced itself in the Composite/Polymer insulator market with its new product, Fiberglass Epoxy Pultruded Composite Insulator Core Rod suitable for application in Composite/Polymer Insulators and Lighting Arrestors.
We supplied a a wide variety of FRP Epoxy Pultruded sections such as FRP Rods, FRP Tubes/Pipes, Dog Bone, Corner Angle, Hat section, Threaded Rods, Studs, FRP Strips/Flats, FRP Nuts and FRP Angles etc. We are supplying our products to major manufacturers in India and as well as other countries. It is the confidence and trust of our clients that has helped us to maintain the quality standards of our products.
Epoxy resins are impregnating compounds with the highest available quality of all comparable polymers for the pultrusions of FRP rod materials. Hot curing epoxy resin in combination with anhydride hardener gives an aging/hydrolysis resistant high strength matrix component. Polyester resins are not hydrolysis resistant and have lower mechanical and electrical properties.
Standard Structural Pultruded Sections
Wood rots. Steel rusts. Aluminium Dents.
Fiberglass reinforced plastic lasts.
When it comes to structural material, few can beat GRP/FRP pultruded profiles. With its anti-corrosive properties, incredible strength, light weight low maintenance, thermal and electrical non-conductivity, it is the superhero of section material.
NJ ENGITECH is the leading supplier of GRP sections India. We promise the best in the market. We are known for our professional service and a consistent commitment to quality. Our wide range of GRP sections is unparalleled in India. These include profiles like Angles, Channel, Wide flange beam, round/rectangular tubes and solid rods etc. We also offer customisation of FRP profiles on request.
We start with a survey of your site and understand your requirements.
Our team then prepares a rough estimate so that you can have an approximate budget.
The experienced team suggests you the rights sections from our extensive range. We offer multiple choices and help you narrow down the right options.
Our team will also help you with the engineering value.
We provide you a cost effective solution that combines functionality with form.
Once we have your order we start on the shipping process. In case, there is a requirement for special customised product, we quickly start manufacturing on the given specification.
Our orders are delivered on-time and in perfect condition.
SR NO PULTRUDED SHAPE SIZE RESIN TYPE
01 I BEAM 100 X 50 X 6 MM ISO,VINYL,POLYESTER
02 CHANNEL 50 X 40 X 5 MM ISO,VINYL,POLYESTER
03 CHANNEL 50 X 50 X 3 MM ISO,VINYL,POLYESTER
04 CHANNEL 80 X 30 X 4 MM ISO,VINYL,POLYESTER
05 CHANNEL 100 X 30 X 4 MM ISO,VINYL,POLYESTER
06 CHANNEL 100 X 50 X 4 MM ISO,VINYL,POLYESTER
07 CHANNEL 150 X 30 X 4 MM ISO,VINYL,POLYESTER
08 CHANNEL 150 X 40 X 4 MM ISO,VINYL,POLYESTER
09 CHANNEL 150 X 50 X 3 MM ISO,VINYL,POLYESTER
11 CHANNEL 300 x 50 x 3 mm ISO,VINYL,POLYESTER
12 SQUARE TUBE 25 X 25 X 19 MM ISO,VINYL,POLYESTER
13 SQUARE TUBE 50 X 50 X 4 MM ISO,VINYL,POLYESTER
14 SQUARE TUBE 50 X 50 X 5 MM ISO,VINYL,POLYESTER
15 SQUARE TUBE 50 X 50 X 6 MM ISO,VINYL,POLYESTER
16 SQUARE TUBE 80 X 80 X 6 MM ISO,VINYL,POLYESTER
17 SQUARE TUBE 80 X 80 X 8 MM ISO,VINYL,POLYESTER
18 SQUARE TUBE 100 X 100 X 6 MM ISO,VINYL,POLYESTER
19 EQUAL ANGLE 30 X 30 X 4 MM ISO,VINYL,POLYESTER
20 EQUAL ANGLE 30 X 30 X 5 MM ISO,VINYL,POLYESTER
21 EQUAL ANGLE 40 X 40 X 4 MM ISO,VINYL,POLYESTER
22 EQUAL ANGLE 40 X 40 X 5 MM ISO,VINYL,POLYESTER
23 EQUAL ANGLE 50 X 50 X 4 MM ISO,VINYL,POLYESTER
24 EQUAL ANGLE 50 X 50 X 6 MM ISO,VINYL,POLYESTER
25 ROUND TUBE 30 X 24 X 3 MM ISO,VINYL,POLYESTER
26 Pultruted Pipe 32 x 19 MM ISO,VINYL,POLYESTER
27 Pultruted Pipe 32 x 25 MM ISO,VINYL,POLYESTER
28 Round Bar 12 MM ISO,VINYL,POLYESTER
29 Round Bar 14 MM ISO,VINYL,POLYESTER
30 Round Bar 16 MM ISO,VINYL,POLYESTER
We also have custom mold for different applications such as cable trays, cooling towers, structural members etc.
Note: The above mentioned list is for reference purpose, Please contact our sales team for detailed dimensions and available sizes.
Application of FRP/GRP Sections India
FRP/GRP sections are an important part of civil infrastructure spanning both the public and private sphere. It has emerged as the answer to an efficient and effective structural component.
Cable management and support
Walkways and gangways
Solar mounting structures
Bridge and highway structures
Decking for marine structures
Have You Considered FRP Pultruded Profiles Yet?
If not, then consider some of the advantages FRP Sections India offers over other section materials like timber, aluminium, concrete or steel.
It is highly resistant to most corrosive elements, including moisture, sun and chemicals.
It is fire retardant.
FRP’s strength to weight ratio is the highest.
It exhibits thermal and electrical non-conductivity.
It requires almost no maintenance since it does not rot, rust or peel away.
It can last for a long time.
It is highly customisable.
NJ Engitech offers wide range of FRP / GRP Gratings to fulfill various industrial needs. Comparing against other conventional materials, FRP Grating provide a series of unmatched benefits like corrosion resistance, light weight, zero maintenance, quick & easy installation & many other advantages.
NJ Engitech grating is the ideal solution for corrosion problems faced by any industry. Due to uniformity of cross-section, resin dispersion, fiber distribution & alignment, it forms the right replacement for steel or aluminium gratings used in highly corrosive atmosphere. grating often outlasts steel 20 to 1 times and it is a long term investment, where frequent grating and walkaway replacement cost are very high and unacceptable.
Mainly there are two types of FRP Gratings to choose from, FRP pultruded gratings and FRP moulded gratings, selection of the type of grating to be used depends upon the application of the end user.
FRP Cable trays
FRP Cable Trays can be used in the most corrosive and structurally demanding environments across the globe; including, Offshore Platforms, Chemical Plants, Oil and Metal Refineries, Water Treatment Plants and many more industries. Considering all kinds of instrumentation and cable runs, Fiber Tech offers two types of Cable Trays:
FRP Ladder Type Cable Tray
FRP Perforated Type Cable Tray
FRP Ladder Type Cable Trays are offered by assembling different types of combinations of Pultruded Cross Sections, Side runners and Rungs. The Rungs are epoxy bonded and fastened to demonstrate high strength against Point, Side and Uniform loads.
FRP Perforated Type Cable Trays,The perforated type, solid bottom, pre-drilled cable trays are designed for light loads namely instrumentation and control cables and for transition from cable trays to individual control points.
FRP Drain Cover
Before FRP came into existence, manhole covers were traditionally manufactured from concrete, steel fibre reinforced concrete, cast iron, ductile iron or PVC materials, but these materials had their own shortcomings like low load carrying efficiency. FRP is considered to be the best alternate material for manhole covers as it has longer life span and has the capability to withstand heavy loads. Increase in heavy traffic and expensive metals completely replaced traditional covers with FRP manhole covers.
Reasons for choosing FRP Manhole Covers over other ordinary covers are :
100% waterproof, corrosion free material with zero scalp value
Light in weight & easy to handle
Available in different granite finishes
Can withstand heavy loads of traffic
FRP Manhole Covers find wide application in :
Inspection chambers for sewerage
Underground Electrical Cabling
Water, Gas and Petroleum Installations
Beautification of Gardens and Landscapes
Recommended locations conforming to load capacity as per IS:1726-1991 & EN-124
LD-2.5 (Light Duty-Test load-2.5 Ton)
Suitable for use within residential and institutional complexes, areas with pedestrian but occasional Light Motor Vehicle traffic. These round and square manhole covers are also used for 'Inspection Chambers'.
MD-10 (Medium Duty-Test load – 10 Ton)
Suitable for use in service lanes, roads on pavements for use under medium-duty vehicular traffic including for car parking areas.
HD-20 (HEAVY DUTY-Test load-20 Ton)
Suitable for use in institutional, commercial areas, carriage, city trunk roads, bus terminals with heavy duty vehicular traffic of wheel loads between 5 to 10 ton.
EHD-35 (EXTRA HEAVY DUTY-Test load-35 Ton)
Suitable for use on carriageways in commercial, industrial, port areas, warehouses with frequent vehicular traffic having wheel loads up to 11.5 ton like heavy trucks, trailers.
a) Prepare concrete bed considering height of frame.
b) Frame should be embedded in 300 x 200 mm of minimum M—20 grade concrete.
c) Make sure that top level of frame should match with the road.
Flat FRP sheet with smooth and wrinkled surface is also available for decorative purpose. We are offering Designwe cloth embedment to sait the beautification requirement with falt or Corrugated FRP sheets in certain areas. Designer domes and pyramind can be offered on request.
We bring you a variety of fiber Glass Roofing Sheets which are made up at par with international standards. Our fiber Glass Corrugated Roofing Sheets can be availed in various sizes and types according to your choice. These fiber Glass Sheets are easier to install like any other conventional sheet fixing. These fiber Glass Roofing Sheets are available in natural, white, green, blue, yellow, red, orange, and many other colours.
Application of FRP Roof Sheet
Open to sky areas
Advantages of FRP Roofing Sheet
Fiberglass Roofing Sheets give plenty of natural light.
Fiberglass Roofing is decorative and enhances the beauty of the roof.
frp chequered plate

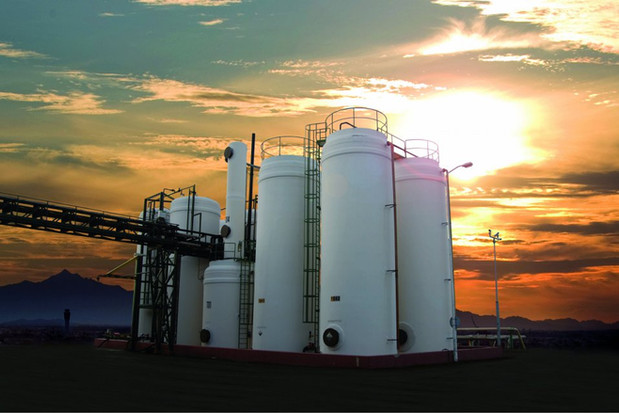

FRP Storage tank, FRP Chemical tank
Good Chemical, Corrosion and Weather Resistance
High Physical and Mechanical Strength
High Strength to weight ratio
Higher conveying ability due to glossy internal finish & hence less pump loads.
Lower thermal conductivity
Resistant to galvanic & stray electrical currents
Excellent thermal insulation
Good adaptability & dimensional stability
Ease of fabrication such as cutting, drilling, joining etc.
Flexibility in design
Light in Weight and hence easy to handle and install
Good Insulating Qualities
Ease of Maintenance with Zero Downtime
Economical & cost effective
Material of Construction
FRP Mouldedusing Isopthalic, Bisphenol, Vinylesterand Epoxy Resin
PP & HDPE
PP/FRP, PPH/FRP, PVC/FRP, CPVC/FRP, PVDF/FRP, ECTFE/FRP
FRP & GRP all type of floure lining works
FRP Pipe & Fittings
Light weight and long service life up to 50 years
Excellent resistance against corrosive material and erosive natural soil
Several Precision Joining Mechanisms Available
Coupling with Elastomeric Gaskets
Bell & Spigot Type with O ring sealing
Butt & Wrap Lamination Type
Flange End Type
Selection of compatible Resin based on fluid application
Capability to sustain high pressure and buckling for UG application
High amount of UV Stabilization and Low Thermal Application for AG application
Flexibility of modification within a short duration
Superior hydraulic characteristics
Easy installation using coupler joints
Fast execution & Completion of projects in time
Material of Construction
Polyester Resin, Vinyl Ester Resin, Superior Grade Vinyl Ester Resin, IsophthalicResin, Epoxy Resin, Fiberglass.
FRP Motor Canopy
We are one of the leading Exporter, Supplier & Manufacturer in Rajkot India of FRP Motor Canopies, Motor protection Shell Canopies, Motor Canopy and FRP Canopies for motors.
Protect The Work Horses Of The Industries :-
Water, Rain, Mist
Acid & Chemicals
The necessity to protect the equipment, needs no emphasis. The daily failures due to one reason or the other is reminding us always. A little money extra spent on the protective means, is worth, than facing the breakdown and failures i.e. PRODUCTION LOSS. The motors are invariably subjected to abnormal circumstances (other than the designed parameters)
